CARLISLE LUXE DIGITAL ENTRANCE LOCK BLACK
LHL-P3-B-CARLISLE
2 Year Warranty

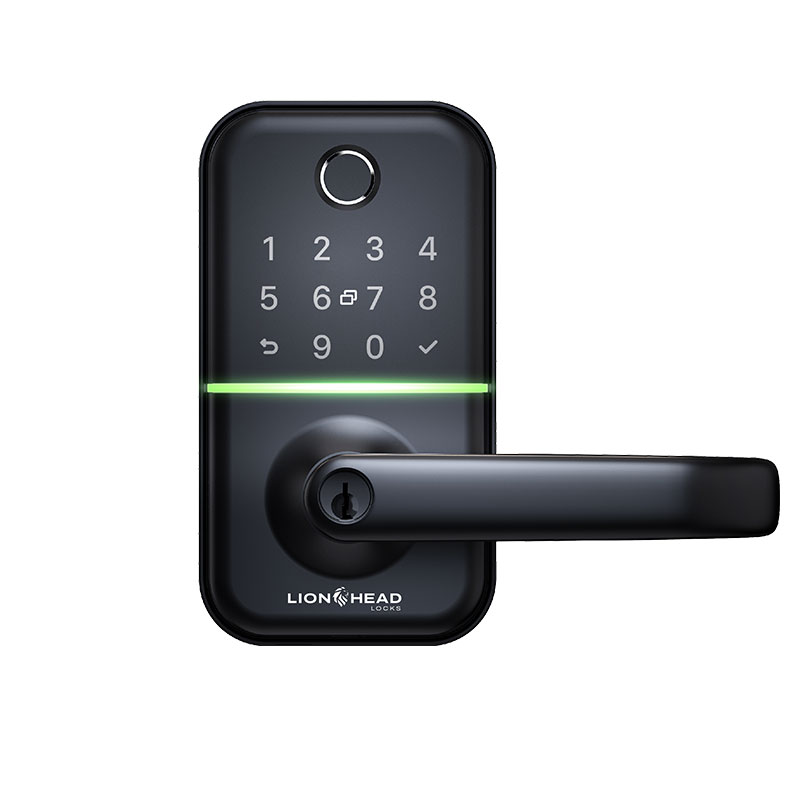

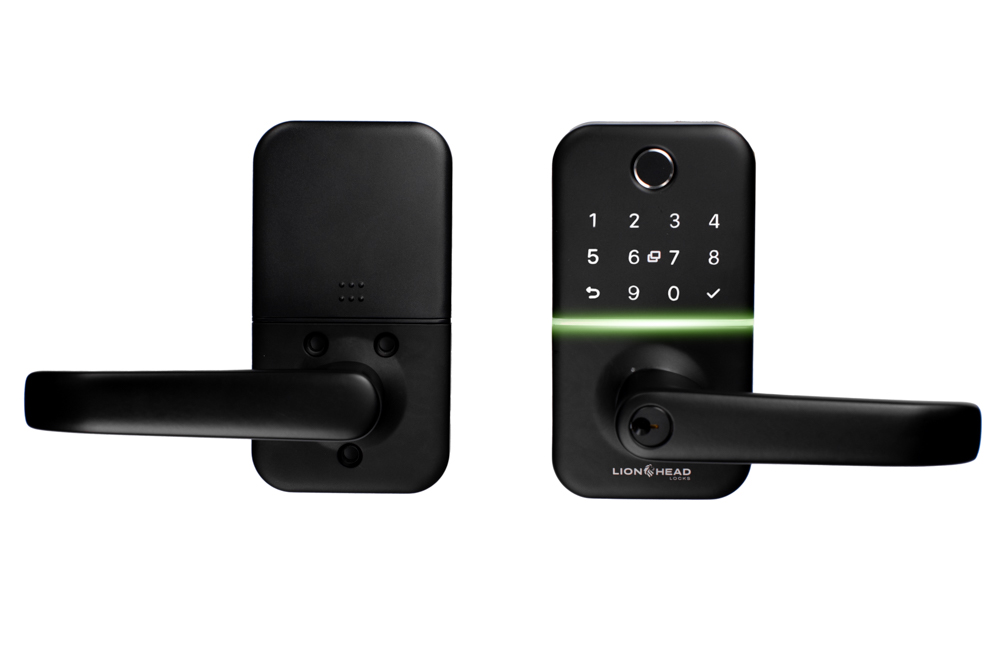

The Lion Head Locks CARLISLE is a compact digital door lock.
The CARLISLE offers multiple unlocking methods, including via the TTLock APP, Bluetooth, Fingerprint, PIN code and RFID Fob/Card. There is also the option of using a manual “track style” key in an emergency.
The CARLISLE is rated IP55 (outside only) meaning it offers reasonable protection from dust and moisture, but it is not suitable for applications fully exposed to the weather.
The lock is supplied with the LHL-HD-ADJ-TUB LATCH 60/70mm adjustable tubular latch, and it will also work with all Lion Head Locks fixed tubular latches.
The CARLISLE is the perfect and simple upgrade option for an existing knob set or lever set.
The CARLISLE is simple to use and is easy to program, using the TTLock APP.
The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries, and it supports more than 30 languages. It is also very secure.
Material: Aluminium alloy
Colour: Silver
IP Rating: IP55 (exterior assembly only)

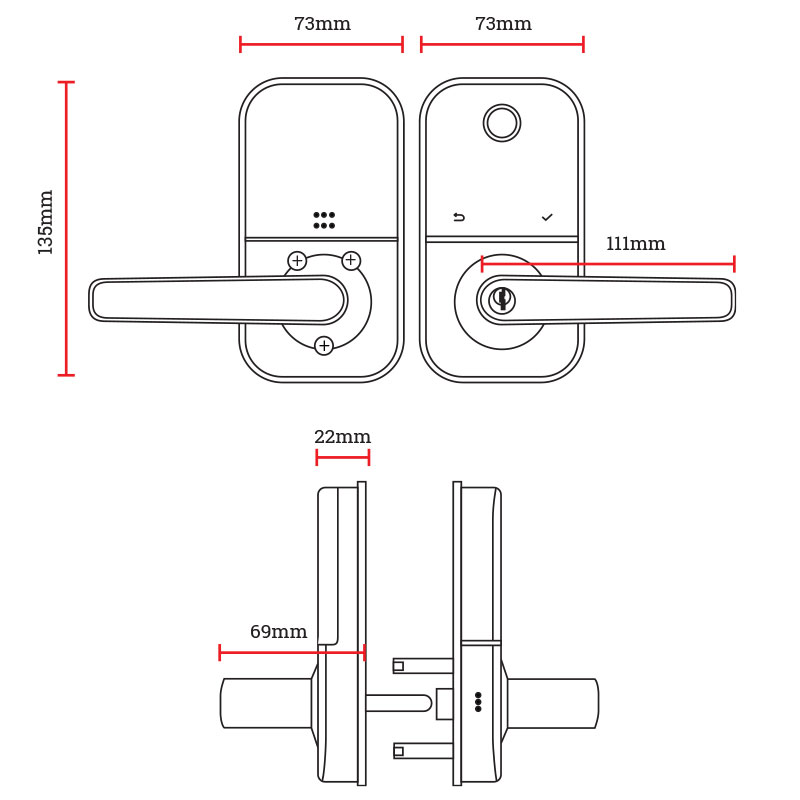

Dimensions: 135mm x 73mm x 22mm
Unlocking Methods: APP, Fingerprint, PIN code, Card, Key
User Capacity: 200 Fingerprint, 150 PIN code, 200 Card

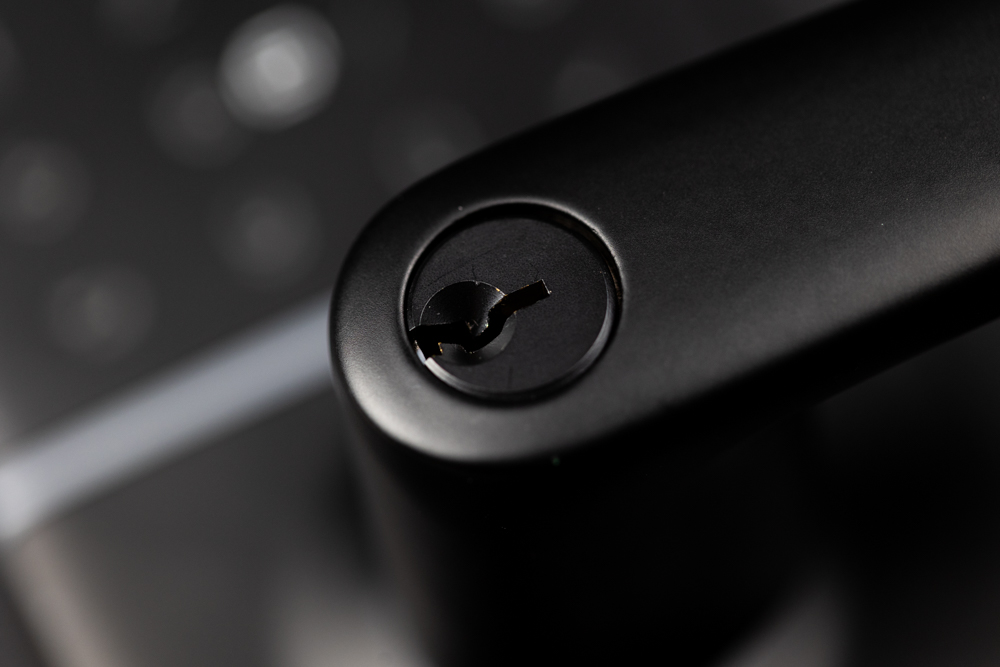

Key Override: Yes (5 pin traditional key, LW4/C4 keyway)
Batteries: 4 X AA alkaline (not supplied)
Batteries Life: Up to 12 months, depending on usage
USB Back Up Power: USB-C port
Recommended Lock/Latch: LHL-HD-ADJ-TUB-LATCH (supplied)
Other Lock/Latch Options: LHL fixed tubular latches
Working Temperature: -25C – 60C degrees
Working Humidity: 0% – 95% RH
Door Thickness 35mm – 65mm
Suitable For: Wooden and metal doors
SUPPLIED LOCK BODY: LHL-HD-ADJ-TUB-LATCH. LHL stainless steel heavy duty 60/70mm adjustable tubular latch (round edge face plate)
COMPATIBLE LOCKS: LHL-TUB-LATCH-60MM, LHL-TUB-LATCH-70MM, LHL-TUB-LATCH-127MM
UNLOCK METHODS
TTLock App
Unlock your door, from anywhere in the world with the easy to use TTLock Phone App
Bluetooth
Use the bluetooth on your phone to unlock your door

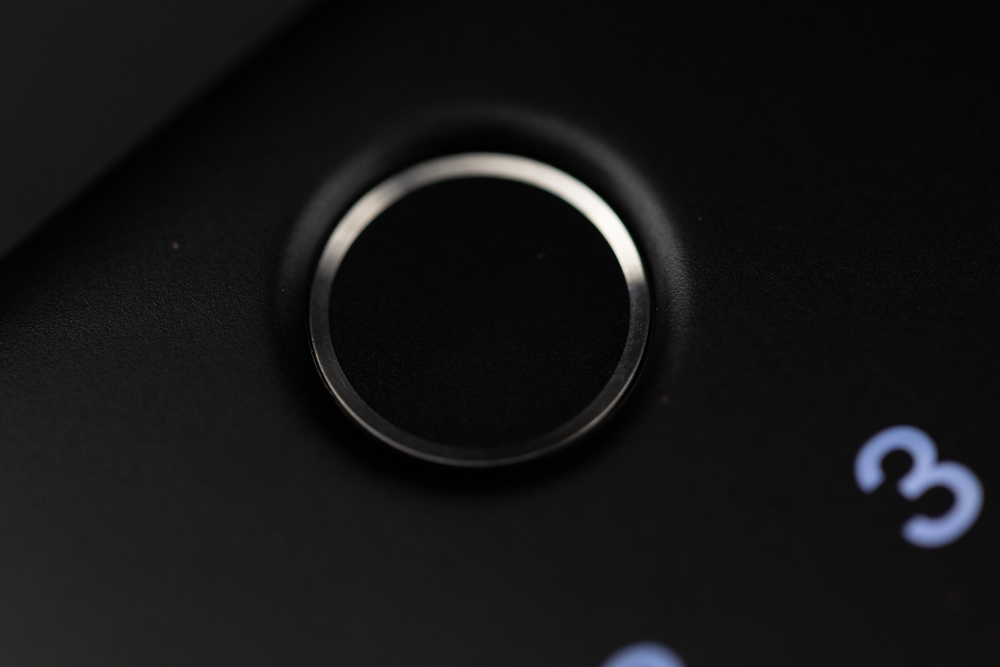

Fingerprint
Register your fingerprint with the easy to use phone app and unlock your door

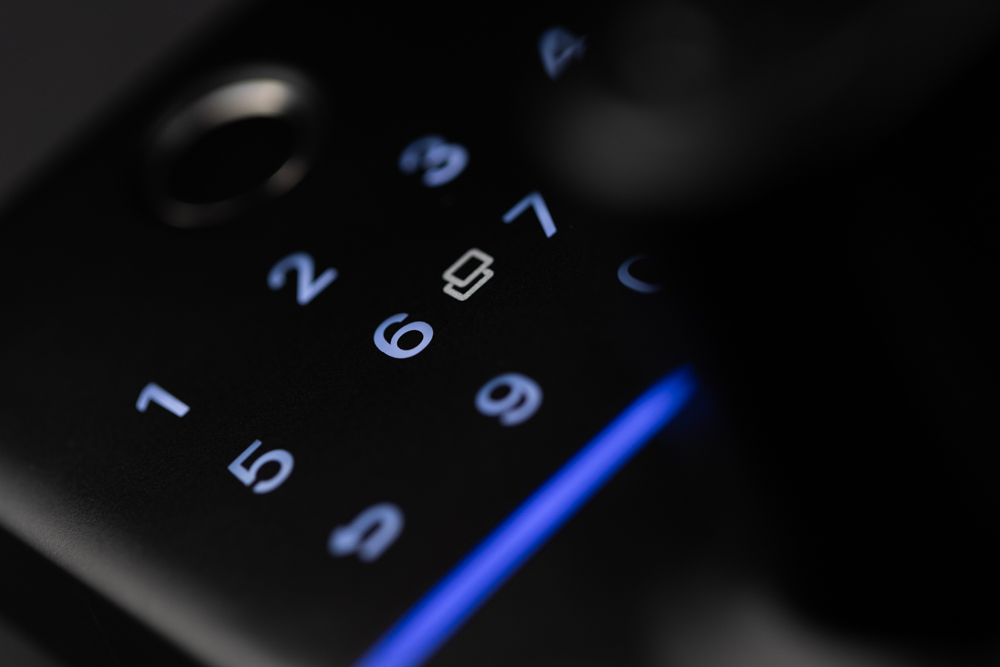

Pincode
Most Lion Head Locks feature a keypad to unlock the door using a pincode
RFID
Use RFID cards registered through the app to unlock your lock
Manual Key
Each Lion Head Lock features a manual key override
TYPICAL APPLICATIONS
HOMES/RESIDENTIAL
APARTMENTS
SHORT STAY ACCOMODATION
