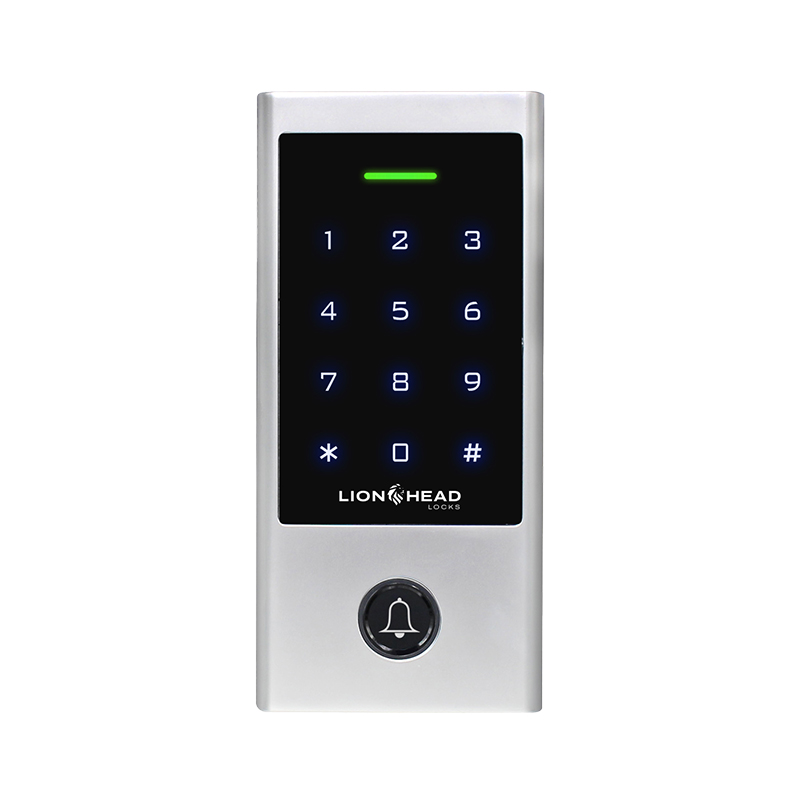

The OSCAR Digital Keypad from Lion Head Locks is a sleek, standalone keypad with integrated TTLock technology. At only 68mmwide, the OSCAR offers a slightly slimmer profile than the BOURKE and the MILTON.
The OSCAR offers multiple access options, including via the TTLock APP, Bluetooth, PIN code and RFID Fob/Card, as well as remote access by the Lion Head Locks optional gateway.

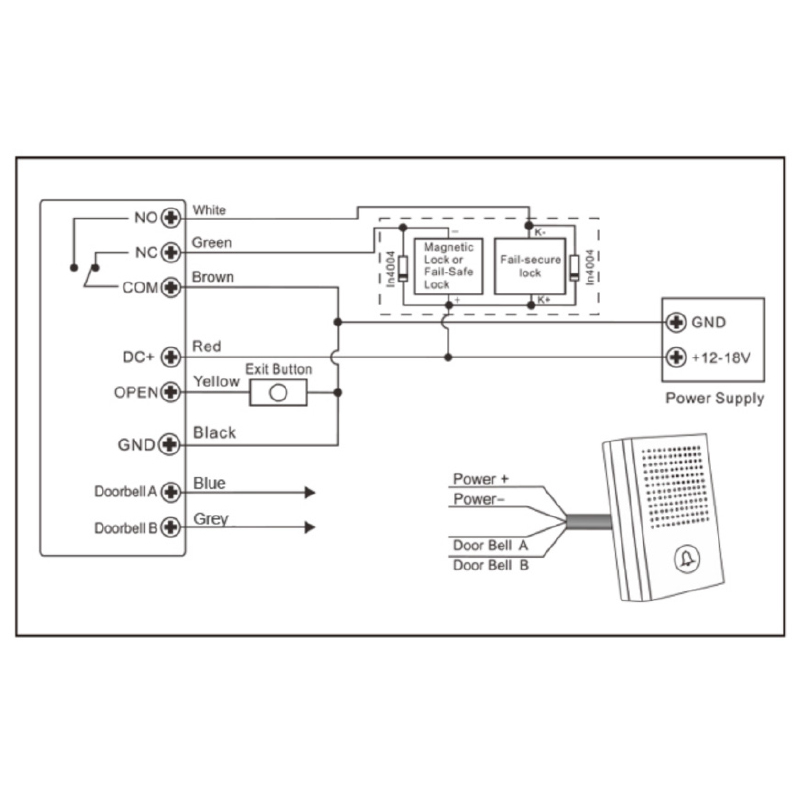

The OSCAR can be used with electric strikes, magnetic latches and motorized gates.
Made from durable zinc alloy, and with an IP66 rating, it is built to withstand tough conditions. With standard 82mm vertical mounting centres, it is suitable for residential and commercial applications, including office environments.
Material : Zinc alloy
Colour : Silver/Black
IP Rating: IP66
Dimensions : 149mm (H) x 68mm (W) x 25mm (D)
Unlocking Methods: APP, PIN code, Card
User Capacity: 300 PIN code (150 custom, 150 dynamic), 1,000 Card
Communication : Bluetooth 4.1
Stand-by current : ≈5mA
Operating current : 12V
