ERSKINE LUXE DIGITAL SLIMLINE ENTRANCE LOCK SILVER

2 Year Warranty

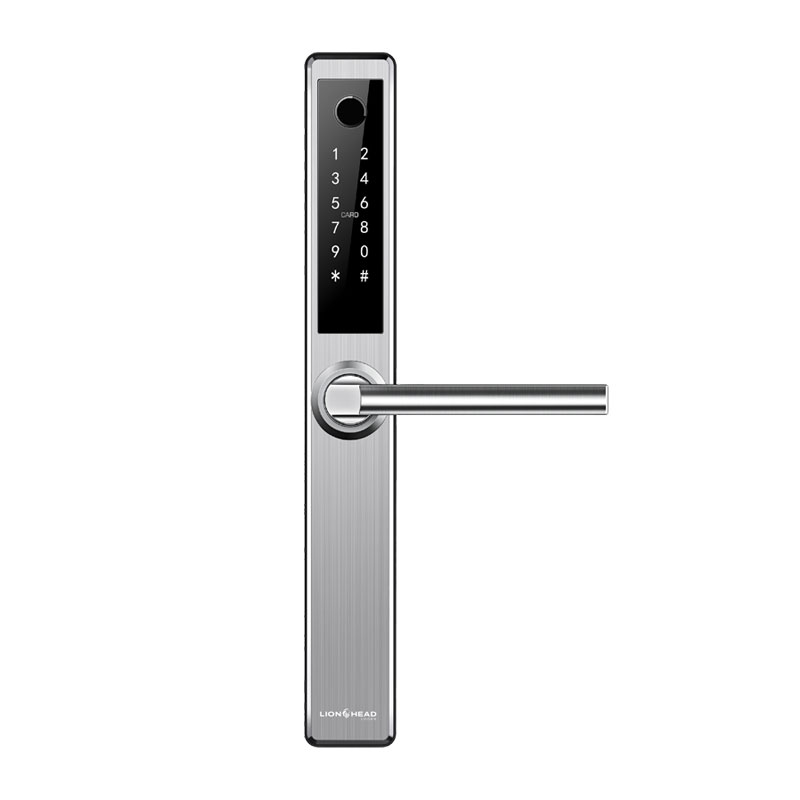

The Lion Head Locks ERSKINE is a stylish, slimline digital door lock.

The ERSKINE offers multiple unlocking methods, including via the TTLock APP, Bluetooth, Fingerprint, PIN code and RFID Fob/Card. There is also the option of using a manual “track style” key in an emergency.

The ERSKINE is rated IP55 (outside only). It offers reasonable protection from dust and moisture, but it is not suitable for applications fully exposed to the weather.

The lock is supplied with the LHL-SW-MORTICE-35 short-backset mortice lock, and it will also work with all Lion Head Locks 85 series mortice locks and 92 series “hook” mortice locks.

The ERSKINE is simple to use and is easy to program, using the TTLock APP.

The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries, and it supports more than 30 languages. It is also very secure

Material: Aluminium alloy

Colour: Black

IP Rating: IP55 (exterior assembly only)

Dimensions: 310mm 39mm x 23mm

Unlocking Methods: APP, Fingerprint, PIN code, Card, Key

User Capacity: 200 Fingerprint, 150 PIN code, 200 Card

Key Override: Yes (track style key)

Batteries: 4 X AA alkaline (not supplied)

Batteries Life: Up to 12 months, depending on usage

USB Back Up Power: USB-C port

Recommended Latch/Lock: LHL-SW-MORTICE-35

Other Lock/Latch Options: LHL 85 series swing bolt and hook mortice locks

Working Temperature: -25C – 60C degrees

Working Humidity: 0% – 95% RH

Door Thickness 35mm – 65mm

Suitable For: Wooden and metal doors

SUPPLIED LOCK BODY: LHL-SW-MORTICE-35. LHL 85 series mortice lock, with 35mm backset, 85mm pitch and 240mm x 22mm faceplate

COMPATIBLE LOCKS: LHL-SW-MORTICE-28, LHL-SW-MORTICE-30, LHL-SW-MORTICE-45, LHL-SW-MORTICE-50, LHL-SW-MORTICE-60, LHL-SW-MORTICE-70, LHL-HOOK-28, LHL-HOOK-35, LHL-HD-ADJ-TUB-LATCH, LHL-OZ-MORTICE, LHL-TUB-LATCH-60MM, LHL-TUB-LATCH-70MM, LHL-TUB-LATCH-127MM, LHL-MF-MORTICE
